Product Overview
Discover the entire product portfolio of the KRAH Group. From power resistors and PTC resistors to electronic controllers as well as assemblies and accessories – gain an overview of our diverse product solutions.
Find the right product
in our configurator
Productfinder
Applications
Industry
E-Mobility
Automotive
Product Groups

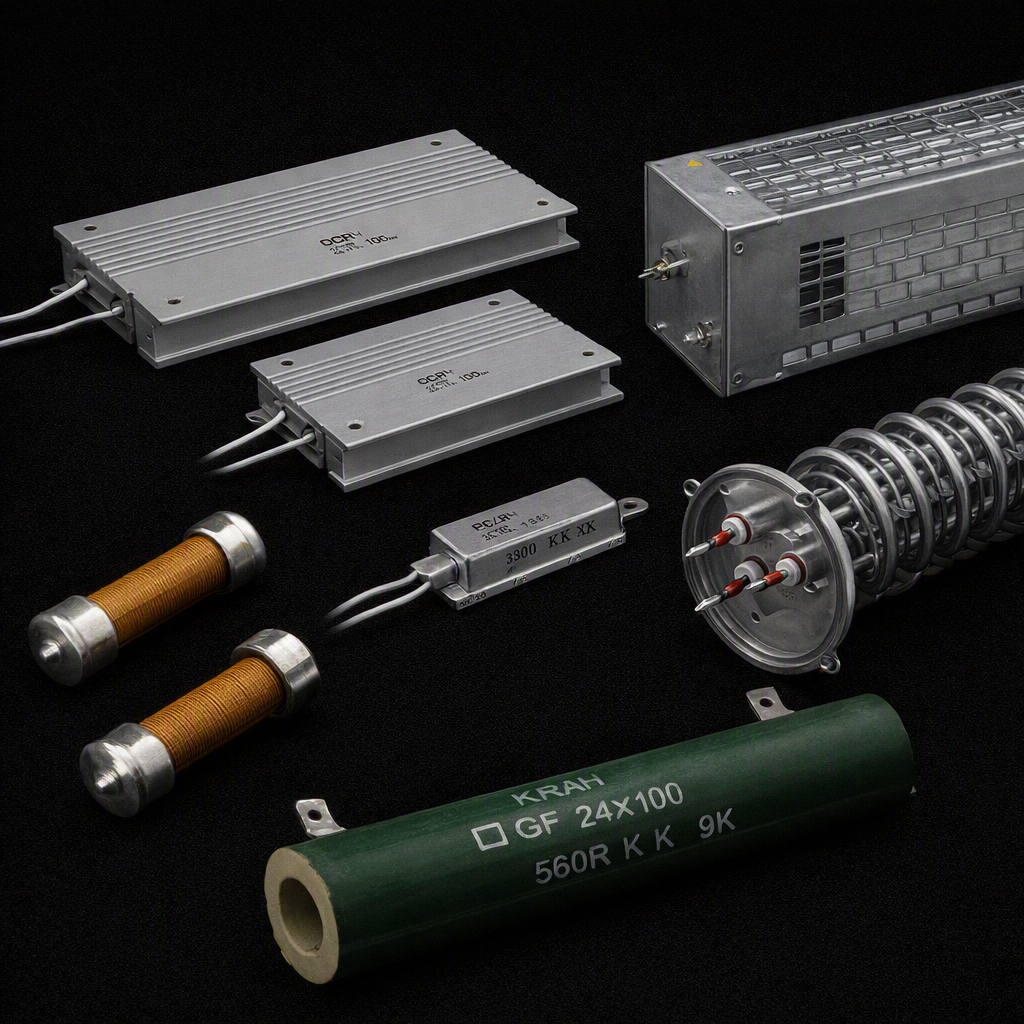

Power Resistors

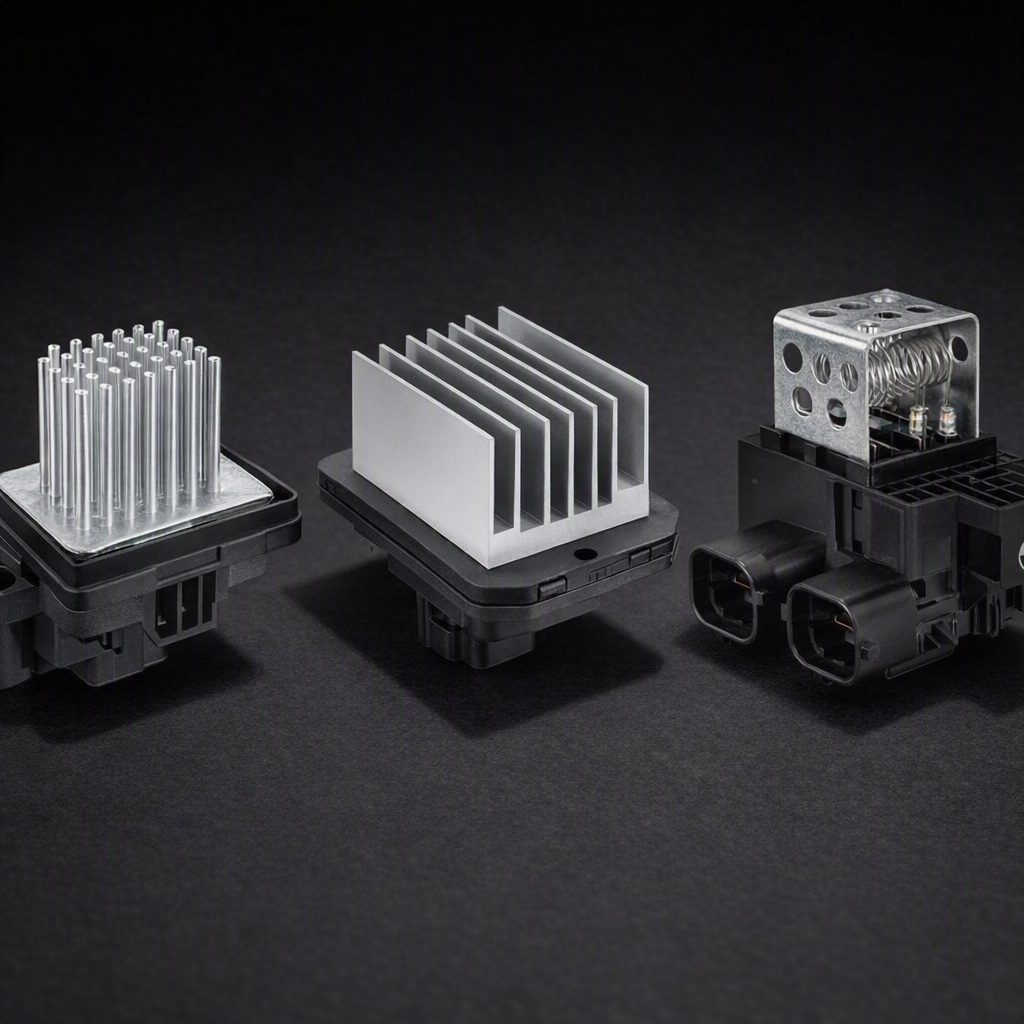

Electronic Controllers
RXDG
High-voltage auxiliary heater for integration into the cooling circuit & temperature control of the passenger compartment
RXDG - High-voltage auxiliary heater for integration into the cooling circuit & temperature control of the passenger compartment. Technical data & application areas here.
#High-Voltage-Coolant-Heater #E-Mobility #High-Voltage-Coolant-Heater #Liquid-cooled #Heating-Elements
D20/4W
High power potentiometers
D20/4W Heavy duty wirewound cement coated resistors (potentiometers) from KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
21 x 21 x 21 … 21 x 21 x 21 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
1.5 W
resistance range max
5.7 Ω
resistance range min
3,0 Ω
resistance range max
10000 Ω
#Speed-control #Adjustable-resistor #Control-resistor #Industry #Equipment-and-plant-construction #Transport-and-Logistics #Ceramic-carrier-cement-coated #Air-cooled
D32/10W
High power potentiometers
D32/10W Heavy duty wirewound cement coated resistors (potentiometers) from KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
28 x 35 x 35 … 28 x 35 x 35 mm
tolerance min ±
5 %
tolerance max ±
10 %
resistance range min
1,0 Ω
resistance range max
20000 Ω
rated power min
3.7 W
resistance range max
24 Ω
#Speed-control #Adjustable-resistor #Control-resistor #Industry #Equipment-and-plant-construction #Transport-and-Logistics #Ceramic-carrier-cement-coated #Air-cooled
D40/20W
High power potentiometers
D40/20W Heavy duty cement coated wirewound resistors (potentiometers) from KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
36 x 45 x 45 … 36 x 45 x 45 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
5.5 W
rated power max
34.7 W
resistance range min
1,0 Ω
dimensions (LxWxH)
30000 mm
#Speed-control #Adjustable-resistor #Control-resistor #Industry #Equipment-and-plant-construction #Transport-and-Logistics #Ceramic-carrier-cement-coated #Air-cooled
D55/40W
High power potentiometers
D55/40W Heavy duty cement coated wirewound resistors (potentiometers) from KRAH. Here you find the technical data & scope of application.
technical datadimensions (LxWxH)
44 x 58 x 58 … 44 x 58 x 58 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
8 W
rated power max
63 W
resistance range min
1,0 Ω
resistance range max
39000 Ω
#Speed-control #Adjustable-resistor #Control-resistor #Industry #Equipment-and-plant-construction #Transport-and-Logistics #Ceramic-carrier-cement-coated #Air-cooled
D85/100W
High power potentiometers
D85/100W Heavy duty cement coated wirewound resistors (potentiometers) from KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
67 x 88 x 88 … 67 x 88 x 88 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
17.5 W
rated power max
142.5 W
resistance range min
1,0 Ω
resistance range max
68000 Ω
#Speed-control #Adjustable-resistor #Control-resistor #Industry #Equipment-and-plant-construction #Transport-and-Logistics #Ceramic-carrier-cement-coated #Air-cooled
DWF
Cement coated wire wound resistors
DWF Cemented Wire Resistors with long solder tail from KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
47 x 11 x 11 … 60 x 11 x 11 mm
tolerance min ±
5 %
resistance range max
1 Ω
rated power min
5 W
rated power max
5 W
resistance range min
10,0 Ω
resistance range max
15000 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Heating-resistor #Charge-and-discharge-resistor #Control-resistor #Ballast-resistor #Industry #Automation-technology #Power-Engineering #Power-Electronics #Transport-and-Logistics #Ceramic-carrier-cement-coated #Air-cooled
FEW
Noise Suppression Resistors (NSR) Automotive
FEW Noise Suppression Resistors (NSR) Automotive from KRAH. Here you can find the technical data & application areas.
#Filter-resistor #Automotive #Ignition-systems #Fiber-glass-carrier #Air-cooled
FH
Wire wound resistors in ceramic casing
FH wire wound resistors in ceramic casing for vertical mounting by KRAH. Here you will find the technical data & application areas.
technical datadimensions (LxWxH)
18 x 7 x 8.3 … 75 x 9 x 10 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
4 W
rated power max
17 W
resistance range min
0,15 Ω
resistance range max
82000 Ω
#Load-resistor #Brake-resistor #Filter-resistor #Charge-and-discharge-resistor #Balancing-resistor #Ballast-resistor #Industry #Automation-technology #Power-Electronics #Ceramic-casing #Air-cooled
FHPR
High power resistors in aluminum casing
FHPR High power resistors in aluminum casing by KRAH. Here you will find the technical data & application areas.
technical datadimensions (LxWxH)
135 x 60 x 90 … 305 x 60 x 90 mm
tolerance min ±
1 %
tolerance max ±
10 %
rated power min
200 W
rated power max
500 W
resistance range min
0,30 Ω
resistance range max
666 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Automation-technology #Power-Engineering #Equipment-and-plant-construction #Power-Electronics #Mechanical-Engineering #Transport-and-Logistics #Aluminium-housing #Air-cooled
FHPR/UL
High power resistors in aluminum casing UL-registered (UL 508)
FHPR/UL High power resistors in aluminum casing UL-registered (UL 508) by KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
135 x 60 x 90 … 305 x 60 x 90 mm
tolerance min ±
1 %
tolerance max ±
10 %
rated power min
150 W
rated power max
400 W
resistance range min
0,3 Ω
resistance range max
666 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Automation-technology #Power-Engineering #Equipment-and-plant-construction #Power-Electronics #Mechanical-Engineering #Transport-and-Logistics #Aluminium-housing #Air-cooled
FTH
Wire wound resistors in ceramic casing
FTH wire wound resistors in ceramic casing of KRAH. Here you can find the technical data & application areas. Spring fusible solder joint. Vertical mounting terminal. Ceramic tube
technical datadimensions (LxWxH)
18 x 9 x 10 … 75 x 9 x 10 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
1.5 W
rated power max
10 W
resistance range min
0,11 Ω
resistance range max
82000 Ω
#Load-resistor #Brake-resistor #Filter-resistor #Charge-and-discharge-resistor #Balancing-resistor #Ballast-resistor #Industry #Automation-technology #Power-Electronics #Ceramic-casing #Air-cooled
FX
Wire wound resistors in ceramic casing
FX wire wound resistors in ceramic casing with axial wire terminal by KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
18 x 7 x 8.3 … 75 x 9 x 10 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
4 W
rated power max
17 W
resistance range min
0,051 Ω
resistance range max
82000 Ω
#Load-resistor #Brake-resistor #Filter-resistor #Charge-and-discharge-resistor #Balancing-resistor #Industry #Automation-technology #Power-Electronics #Ceramic-casing #Air-cooled
GF
Vitreous enamelled wire wound resistors
GF Wire wound vitreous resistors with radial lugs by KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
55 x 13 x 13 … 100 x 24 x 24 mm
tolerance min ±
2 %
tolerance max ±
10 %
rated power min
25 W
rated power max
80 W
resistance range min
1,0 Ω
resistance range max
130000 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Heating-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Equipment-and-plant-construction #Power-Electronics #Transport-and-Logistics #Ceramic-carrier-vitreous-enamelled #Air-cooled
GF...V
Vitreous enamelled wire wound resistors
GF...V Wire wound vitreous resistors with radial lugs and adjustable lug made by KRAH. Here you will find the technical data & application areas.
technical datadimensions (LxWxH)
55 x 13 x 13 … 100 x 24 x 24 mm
resistance range min
10 Ω
resistance range max
10 Ω
rated power min
20 W
rated power max
64 W
resistance range min
5,01 Ω
resistance range max
5100 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Speed-control #Adjustable-resistor #Heating-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Power-Engineering #Equipment-and-plant-construction #Power-Electronics #Ceramic-carrier-vitreous-enamelled #Air-cooled
GK
Vitreous enamelled wire wound resistors
GK Wire wound vitreous resistors for ferrules made by KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
55 x 13 x 13 … 265 x 24 x 24 mm
tolerance min ±
2 %
tolerance max ±
10 %
rated power min
25 W
rated power max
300 W
resistance range min
2,2 Ω
resistance range max
330000 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Heating-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Equipment-and-plant-construction #Power-Electronics #Transport-and-Logistics #Ceramic-carrier-vitreous-enamelled #Air-cooled
GKD
Vitreous enamelled wire wound resistors
GKD Wire wound vitreous resistors with axial wire leads, with end caps made by KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
14 x 5 x 5 … 50 x 9 x 9 mm
tolerance min ±
2 %
tolerance max ±
10 %
rated power min
5 W
rated power max
20 W
resistance range min
1,5 Ω
resistance range max
56000 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Heating-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Automation-technology #Equipment-and-plant-construction #Power-Electronics #Transport-and-Logistics #Ceramic-carrier-vitreous-enamelled #Air-cooled
GLD
Vitreous enamelled wire wound resistors
GLD Wire wound vitreous resistors with axial wire leads, with end caps made by KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
18 x 6.5 x 6.5 … 50 x 11 x 11 mm
tolerance min ±
2 %
tolerance max ±
10 %
rated power min
9.5 W
rated power max
24.5 W
resistance range min
0,22 Ω
resistance range max
82000 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Heating-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Automation-technology #Transport-and-Logistics #Ceramic-carrier-vitreous-enamelled #Air-cooled
GLS
Vitreous enamelled wire wound resistors
GLS Vitreous enamelled wire wound resistors from KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
45 x 10 x 10 … 330 x 33 x 33 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
10 W
tolerance max ±
400 %
resistance range min
1,0 Ω
resistance range max
275000 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Heating-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Power-Engineering #Transport-and-Logistics #Ceramic-carrier-vitreous-enamelled #Air-cooled
GS
Vitreous enamelled wire wound resistors
GS Wire wound vitreous resistors with radial tabs made by KRAH. Here you will find the technical data & application areas.
technical datadimensions (LxWxH)
45 x 9 x 9 … 330 x 36 x 36 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
15 W
rated power max
500 W
resistance range min
1,0 Ω
resistance range max
300000 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Heating-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Power-Engineering #Transport-and-Logistics #Ceramic-carrier-vitreous-enamelled #Air-cooled
GS...V
Vitreous enamelled wire wound resistors
GS...V Wire wound vitreous resistors with tabs and adjustable terminal made by KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
45 x 9 x 9 … 330 x 36 x 36 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
12 W
rated power max
400 W
resistance range min
4,3 Ω
resistance range max
36000 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Speed-control #Adjustable-resistor #Heating-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Power-Engineering #Equipment-and-plant-construction #Power-Electronics #Ceramic-carrier-vitreous-enamelled #Air-cooled
GSB
Vitreous enamelled wire wound resistors
GSB Wire wound resistors with corrugated ribbon or round wire made by KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
100 x 30 x 30 … 330 x 30 x 30 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
150 W
rated power max
500 W
resistance range min
0,15 Ω
resistance range max
270000 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Heating-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Transport-and-Logistics #Ceramic-carrier-vitreous-enamelled #Air-cooled
GSB...V
Vitreous enamelled wire wound resistors
GSB...V Wire wound resistors with corrugated ribbon or round wire and adjustable lug made by KRAH. Here you will find the technical data & application areas.
technical datadimensions (LxWxH)
100 x 30 x 30 … 330 x 30 x 30 mm
tolerance min ±
10 %
tolerance max ±
10 %
rated power min
120 W
tolerance max ±
400 %
resistance range min
0,15 Ω
resistance range max
36000 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Speed-control #Adjustable-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Power-Engineering #Equipment-and-plant-construction #Power-Electronics #Ceramic-carrier-vitreous-enamelled #Air-cooled
HPR
High power resistors in aluminum casing
HPR High power resistors in aluminum casing from KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
102 x 40 x 21 … 337 x 60 x 31 mm
tolerance min ±
1 %
tolerance max ±
10 %
rated power min
60 W
rated power max
500 W
resistance range min
0,10 Ω
resistance range max
7500 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Automation-technology #Power-Engineering #Equipment-and-plant-construction #Power-Electronics #Mechanical-Engineering #Transport-and-Logistics #Aluminium-housing #Air-cooled
HPR 800 - 2500
High power resistors in aluminum casing
HPR 800 - 2500 High power resistors in aluminum casing from KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
340 x 50 x 100 … 800 x 50 x 100 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
750 W
rated power max
2000 W
resistance range min
0,90 Ω
resistance range max
330 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Automation-technology #Power-Engineering #Equipment-and-plant-construction #Power-Electronics #Mechanical-Engineering #Transport-and-Logistics #Aluminium-housing #Air-cooled
HPRF
High power resistors in aluminum casing
HPRF - High power resistors in aluminum casing from KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
110 x 80 x 15 … 216 x 80 x 15 mm
tolerance min ±
1 %
rated power max
10 W
rated power min
100 W
rated power max
200 W
resistance range max
200 Ω
resistance range min
1,9 Ω
tolerance max ±
10 %
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Heating-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Automation-technology #Power-Engineering #Equipment-and-plant-construction #Power-Electronics #Mechanical-Engineering #Transport-and-Logistics #Aluminium-housing #Air-cooled
HPRF 600...C/UL
High power resistors in aluminium profile UL-registered (UL 508)
HPRF 600...C/UL High power resistors in aluminium profile UL-registered (UL 508) from KRAH. Here you can find the technical data & application areas.
technical datatolerance
±5% … ±10% %
rated power
100 - 240 W W
dimensions (LxWxH)
216 x 80 x 30 … 216 x 80 x 30 mm
resistance range
6R … 200R
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
100 W
rated power max
240 W
resistance range min
6 Ω
resistance range max
200 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Automation-technology #Power-Engineering #Equipment-and-plant-construction #Power-Electronics #Mechanical-Engineering #Transport-and-Logistics #Aluminium-housing #Air-cooled
HPRF 600/UL
High power resistors in aluminium profile UL-registered (UL 508)
HPRF 600/UL high power resistors in aluminum profile UL registered (UL 508) from KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
216 x 80 x 30 … 216 x 80 x 30 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
150 W
rated power max
240 W
resistance range min
6 Ω
resistance range max
200 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Automation-technology #Power-Engineering #Equipment-and-plant-construction #Power-Electronics #Mechanical-Engineering #Transport-and-Logistics #Aluminium-housing #Air-cooled
HPRF T
High power resistors in aluminum casing
HPRF T high power resistors in aluminum profile from KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
110 x 80 x 15 … 216 x 80 x 15 mm
tolerance min ±
1 %
tolerance max ±
10 %
rated power min
100 W
rated power max
200 W
resistance range min
1,9 Ω
resistance range max
200 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Heating-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Automation-technology #Power-Engineering #Equipment-and-plant-construction #Power-Electronics #Mechanical-Engineering #Transport-and-Logistics #Aluminium-housing #Air-cooled
HPRF T/UL
High power resistors in aluminum casing UL-registered (UL 508)
HPRF T/UL high power resistors in aluminum profile UL-registered (UL 508) from KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
110 x 80 x 15 … 216 x 80 x 15 mm
tolerance min ±
1 %
tolerance max ±
10 %
rated power min
250 W
rated power max
500 W
resistance range max
200 Ω
resistance range min
1,9 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Heating-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Power-Engineering #Equipment-and-plant-construction #Power-Electronics #Mechanical-Engineering #Transport-and-Logistics #Aluminium-housing #Air-cooled
HPRF...C
High power resistors in aluminum casing
HPRF...C high power resistors in aluminum casing by KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
110 x 80 x 15 … 216 x 80 x 15 mm
tolerance min ±
1 %
tolerance max ±
10 %
rated power min
100 W
rated power max
200 W
resistance range min
1 Ω
dimensions (LxWxH)
200 mm
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Heating-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Automation-technology #Power-Engineering #Equipment-and-plant-construction #Power-Electronics #Mechanical-Engineering #Transport-and-Logistics #Aluminium-housing #Air-cooled
HPRF...C/UL
High power resistors in aluminum casing UL-registered (UL 508)
HPRF...C/UL High power resistors in aluminum profile UL-registered (UL 508) from KRAH. Here you will find the technical data & application areas.
technical datadimensions (LxWxH)
110 x 80 x 15 … 216 x 80 x 15 mm
rated power min
1 W
tolerance max ±
10 %
rated power min
100 W
rated power max
200 W
resistance range
1,9
resistance range max
200 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Charge-and-discharge-resistor #Ballast-resistor #Automation-technology #Power-Engineering #Equipment-and-plant-construction #Power-Electronics #Mechanical-Engineering #Transport-and-Logistics #Air-cooled
HPRF/UL
High power resistors in aluminum casing UL-registered (UL 508)
HPRF/UL high power resistors in aluminum profile UL registered (UL 508) from KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
110 x 80 x 15 … 216 x 80 x 15 mm
tolerance min ±
1 %
tolerance max ±
10 %
rated power min
100 W
rated power max
200 W
resistance range min
1,9 Ω
resistance range max
200 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Heating-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Automation-technology #Power-Engineering #Equipment-and-plant-construction #Power-Electronics #Mechanical-Engineering #Transport-and-Logistics #Aluminium-housing #Air-cooled
HPRS
High power resistors in aluminum casing
HPRS - high power resistors in aluminum profile from KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
100 x 33 x 12.5 … 100 x 33 x 12.5 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
30 W
rated power max
30 W
resistance range min
0,30 Ω
resistance range max
30000 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Discharge-resistor #Heating-resistor #Charge-and-discharge-resistor #Balancing-resistor #Ballast-resistor #Industry #Automation-technology #Power-Engineering #Power-Electronics #Aluminium-housing #Air-cooled
HPRS HS
High power resistors in aluminum casing
HPRS HS - High power resistors in aluminum casing from KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
80 x 38.5 x 8 … 80 x 38.5 x 8 mm
tolerance min ±
0 %
tolerance max ±
10 %
rated power min
40 W
rated power max
70 W
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Heating-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Automation-technology #Power-Engineering #Power-Electronics #Aluminium-housing #Air-cooled
HPRS L
High power resistors in aluminum casing
HPRS L - High power resistors in aluminum casing from KRAH. Here you can find the technical data & application areas.
#Discharge-resistor #Ballast-resistor #E-Mobility #Battery-Management #On-Board-Charger #Aluminium-housing #Air-cooled
HPRS T
High power resistors in aluminum casing
HPRS T - High power resistors in aluminum casing from KRAH. Here you can find the technical data & application areas.
technical datatechnical data
- automotivegerechte Auslegung - Hohe Pulsbelastbarkeit - kompakte und flache Bauform - Realisierung Kundenindividueller Lösungen - Flexibilität innerhalb der Montageposition - Hohe Flexibilität während der Entwicklungsphase - In Abhängigkeit der techn. A
#Discharge-resistor #Precharge-resistor #E-Mobility #Active-Discharge-Resistor #Battery-Management #On-Board-Charger #Passive-Discharge-Resistor #Precharge-Resistor #Aluminium-housing #Air-cooled
HPRS TS
High power resistors in aluminum casing
HPRS TS - High power resistors in aluminum casing from KRAH. Here you can find the technical data & application areas.
#Discharge-resistor #Customized-solutions #Precharge-resistor #E-Mobility #Active-Discharge-Resistor #Battery-Management #On-Board-Charger #Passive-Discharge-Resistor #Precharge-Resistor #Aluminium-housing #Air-cooled
HVAC cement coated wire wound resistor
Cement Coated Wire Wound Resistors Automotive
HVAC Cemented wire wound resistors automotive from KRAH. Here you can find the technical data & application areas.
#Speed-control #Automotive #Heating-conditioning #Ceramic-carrier-cement-coated #Air-cooled
HWG / HPR
High power resistors in a housing
HWG / HPR high power resistors in housing from KRAH. Here you will find the technical data & application areas.
technical datadimensions (LxWxH)
485 x 95 x 170 … 845 x 185 x 170 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
750 W
rated power max
3000 W
resistance range min
0,45 Ω
resistance range max
320 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Industry #Automation-technology #Power-Engineering #Equipment-and-plant-construction #Power-Electronics #Housing-units #Air-cooled
HWG / VHPR
High power resistors in a housing
HWG / VHPR high power resistors in housing from KRAH. Here you will find the technical data & application areas.
technical datadimensions (LxWxH)
245 x 70 x 95 … 445 x 300 x 120 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
100 W
rated power max
2000 W
resistance range min
0,1 Ω
resistance range max
30000 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Industry #Automation-technology #Power-Engineering #Equipment-and-plant-construction #Power-Electronics #Mechanical-Engineering #Transport-and-Logistics #Housing-units #Air-cooled
KBD
Wire wound resistors in ceramic casing
KBD wire wound resistors in ceramic casing, low-valued and low-induction made by KRAH. Here you will find the technical data & application areas.
technical datadimensions (LxWxH)
18 x 6.5 x 6.5 … 75 x 9 x 9 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
4 W
rated power max
17 W
resistance range min
0,0062 Ω
resistance range max
0,20 Ω
#Load-resistor #Brake-resistor #Filter-resistor #Charge-and-discharge-resistor #Balancing-resistor #Ballast-resistor #Industry #Automation-technology #Power-Electronics #Ceramic-casing #Air-cooled
KFD
Wire wound resistors in ceramic casing
KFD wire wound resistors in ceramic casing from KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
18 x 6.5 x 6.5 … 75 x 9 x 9 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
4 W
tolerance max ±
17 %
resistance range min
0,051 Ω
resistance range max
82000 Ω
#Load-resistor #Brake-resistor #Filter-resistor #Charge-and-discharge-resistor #Balancing-resistor #Ballast-resistor #Industry #Automation-technology #Power-Electronics #Ceramic-casing #Air-cooled
KRGG
Wire wound resistors in ceramic casing
KRGG High power resistors, wire wound in ceramic casing made by KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
20 x 11 x 7 … 35 x 16 x 13 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
2 W
rated power max
100 W
resistance range min
0,2 Ω
resistance range max
8000 Ω
#Load-resistor #Brake-resistor #Filter-resistor #Charge-and-discharge-resistor #Balancing-resistor #Precharge-resistor #Industry #Automation-technology #Power-Electronics #Ceramic-casing #Air-cooled
KRX27-8
High power resistors in a galvanised sheet steel casing
KRX27-8 high power resistors in galvanized sheet steel casing from KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
47.6 x 19.1 x 19.1 … 163.5 x 22 x 22 mm
tolerance max ±
5 %
rated power min
10 W
rated power min
20 W
rated power max
75 W
resistance range min
0,15 Ω
resistance range max
51000 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Heating-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Automation-technology #Power-Engineering #Equipment-and-plant-construction #Power-Electronics #Mechanical-Engineering #Transport-and-Logistics #Air-cooled #Steel-Stainless-Steel-housing
KST
Wire wound resistors in ceramic casing
KST wire wound resistors in ceramic casing with connector blades, soldering connections or radial leads made by KRAH. Here you will find the technical data & application areas.
technical datadimensions (LxWxH)
50 x 13 x 13 … 100 x 13 x 13 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
15 W
rated power max
30 W
resistance range min
0,18 Ω
resistance range max
75000 Ω
#Load-resistor #Brake-resistor #Filter-resistor #Charge-and-discharge-resistor #Balancing-resistor #Ballast-resistor #Industry #Automation-technology #Power-Electronics #Ceramic-casing #Air-cooled
KVW
Plate Style Resistors Automotive
KVW plate style resistors automotive by KRAH. Here you can find the technical data & application areas.
#Speed-control #Automotive #Engine-cooling #Aluminium-housing #Air-cooled
KVW
Coil Resistors Automotive
KVW Coil Resistors Automotive by KRAH. Here you can find the technical data & application areas.
#Speed-control #Automotive #Engine-cooling #Air-cooled #Open-coil-resistors
KVW
Ceramic Resistors Automotive
KVW Ceramic Resistors Automotive by KRAH. Here you can find the technical data & application areas.
#Automotive #Engine-cooling #Ceramic-carrier-cement-coated #Air-cooled
LPM
Linear Power Module
An electronic controller for regulating the cabin fan used in the passenger compartment’s air conditioning system.
#LPM #Automotive #Heating-conditioning #electronic controllers
MPM
Mosfet Power Module
MPM Mosfet Power Module by KRAH. Here you can find the technical data & application areas.
#MPM #Automotive #Heating-conditioning #Engine-cooling #electronic controllers
RHGS
Brake resistors with tubular heating element in metal casing
RHGS Brake resistors with tubular heating element in metal casing by KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
683 x 330 x 295 … 683 x 330 x 295 mm
rated power min
10 W
tolerance max ±
10 %
rated power min
2000 W
rated power max
10000 W
#Load-resistor #Brake-resistor #Heating-resistor #Industry #Automation-technology #Equipment-and-plant-construction #Housing-units #Air-cooled
RW
Vitreous enamelled wire wound resistors
technical datadimensions (LxWxH)
44.4 x 12.7 x 12.7 … 266.7 x 33.3 x 33.3 mm
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Heating-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Transport-and-Logistics #Ceramic-carrier-vitreous-enamelled #Air-cooled
RX
Vitreous enamelled wire wound resistors
RX Wire wound vitreous resistors with radial lugs and adjustable lug to MIL-R-19365 made by KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
44.4 x 12.7 x 12.7 … 266.7 x 33.3 x 33.3 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
11 W
rated power max
240 W
resistance range min
1 Ω
resistance range max
47000 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Speed-control #Adjustable-resistor #Heating-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Power-Engineering #Equipment-and-plant-construction #Power-Electronics #Ceramic-carrier-vitreous-enamelled #Air-cooled
RXLG-PTC
High power resistors in aluminium profile
RXLG-PTC high power resistors in aluminum profile by KRAH. Here you can find the technical data & application areas.
technical datarated power min
35 W
rated power max
70 W
resistance range min
175 Ω
resistance range max
1750 Ω
#Brake-resistor #Discharge-resistor #E-Mobility #Battery-Management #On-Board-Charger #Industry #Automation-technology #Power-Electronics #Aluminium-housing #Air-cooled #PTC
RXLG-Z/UL
High power resistors in aluminum casing UL-registered (UL 508)
RXLG-Z/UL - High load resistors in aluminum profile UL registered (UL 508) by KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
80 x 40 x 7 … 165 x 40 x 7 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
20 W
rated power max
65 W
resistance range min
3 Ω
resistance range max
11000 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Heating-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Automation-technology #Power-Engineering #Power-Electronics #Aluminium-housing #Air-cooled
SFD
Wire wound resistors
SFD wire wound resistors with axial wire terminal, silicon cemented made by KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
16 x 5 x 5 … 35 x 5 x 5 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
1 W
rated power max
3 W
resistance range min
0,051 Ω
dimensions (LxWxH)
33000 mm
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Heating-resistor #Charge-and-discharge-resistor #Control-resistor #Precharge-resistor #Industry #Automation-technology #Power-Electronics #Fiber-glass-carrier #Air-cooled
SFR
Wire wound resistors
SFR wire wound resistors with radial lead, silicon cemented made by KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
19 x 5 x 5 … 54 x 5 x 5 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
2.5 W
rated power max
8 W
resistance range min
0,1 Ω
resistance range max
27000 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Heating-resistor #Charge-and-discharge-resistor #Control-resistor #Ballast-resistor #Industry #Automation-technology #Power-Electronics #Fiber-glass-carrier #Air-cooled
VHPR
High power resistors in aluminum casing
VHPR High power resistors in aluminum casing by KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
102 x 40 x 21 … 407 x 60 x 31 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
60 W
rated power max
560 W
resistance range min
0,1 Ω
resistance range max
1800 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Automation-technology #Power-Engineering #Equipment-and-plant-construction #Power-Electronics #Mechanical-Engineering #Transport-and-Logistics #Aluminium-housing #Air-cooled
VHPR 3phasig
High power resistors in aluminum casing
VHPR 3-phase high power resistors in aluminum casing from KRAH. Here you can find the technical data & application areas.
technical datarated power min
200 W
rated power max
500 W
resistance range min
0,5 Ω
resistance range max
25 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Customized-solutions #Charge-and-discharge-resistor #Ballast-resistor #Industry #Automation-technology #Power-Engineering #Equipment-and-plant-construction #Power-Electronics #Mechanical-Engineering #Transport-and-Logistics #Aluminium-housing #Air-cooled
VHPR T
High power resistors in aluminum casing including temperature sensor
VHPR T high power resistors in aluminum profile with temperature sensor by KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
102 x 40 x 21 … 407 x 60 x 31 mm
tolerance min ±
1 %
tolerance max ±
10 %
rated power min
60 W
rated power max
560 W
resistance range min
0,1 Ω
resistance range max
1800 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Automation-technology #Power-Engineering #Equipment-and-plant-construction #Power-Electronics #Mechanical-Engineering #Transport-and-Logistics #Aluminium-housing #Air-cooled
VHPR...C
High power resistors in aluminum casing
VHPR...C high power resistors in aluminum casing by KRAH. Here you will find the technical data & application areas.
technical datadimensions (LxWxH)
167 x 60 x 31 … 424 x 60 x 31 mm
tolerance min ±
1 %
tolerance max ±
10 %
rated power min
200 W
rated power max
560 W
resistance range min
0,3 Ω
resistance range max
666 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Automation-technology #Power-Engineering #Equipment-and-plant-construction #Power-Electronics #Mechanical-Engineering #Transport-and-Logistics #Air-cooled
VHPR...C/UL
High power resistors in aluminum casing UL-registered (UL 508)
VHPR...C/UL High power resistors in aluminum casing UL registered (UL 508) by KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
167 x 60 x 31 … 424 x 60 x 31 mm
tolerance min ±
1 %
tolerance max ±
10 %
rated power min
200 W
rated power max
480 W
resistance range min
0,3 Ω
resistance range max
666 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Automation-technology #Power-Engineering #Equipment-and-plant-construction #Power-Electronics #Mechanical-Engineering #Transport-and-Logistics #Aluminium-housing #Air-cooled
VHPR/UL
High power resistors in aluminum casing UL-registered (UL 508)
VHPR/UL high power resistors in aluminum casing UL registered (UL 508) by KRAH. Here you can find the technical data & scope of application.
technical datadimensions (LxWxH)
102 x 40 x 21 … 407 x 60 x 31 mm
tolerance min ±
1 %
tolerance max ±
10 %
rated power min
60 W
rated power max
560 W
resistance range min
0,1 Ω
resistance range max
750 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Automation-technology #Power-Engineering #Equipment-and-plant-construction #Power-Electronics #Mechanical-Engineering #Transport-and-Logistics #Aluminium-housing #Air-cooled
WD
High power resistors in aluminum casing
WD - High power resistors in aluminum casing by KRAH. Here you can find the technical data & scope of application.
technical datadimensions (LxWxH)
16.8 x 17 x 9 … 127 x 73 x 45 mm
rated power min
10 W
rated power max
300 W
resistance range max
100000 Ω
#Load-resistor #Filter-resistor #Heating-resistor #Balancing-resistor #Ballast-resistor #Industry #Automation-technology #Power-Electronics #Aluminium-housing #Air-cooled
Resistor Relay Module
Resistor Relay Module by KRAH. Here you can find the technical data & scope of application.
#Relay-box #Automotive #Heating-conditioning #Engine-cooling #electronic controllers
ZDFA
Cement-coated wire wound resistors
ZDFA Cemented wire wound resistors - flat oval, with lugs or plug-type connections made by KRAH. Here you can find the technical data & scope of application.
technical datadimensions (LxWxH)
50 x 10.5 x 30 … 165 x 10.5 x 30 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
30 W
rated power max
100 W
resistance range min
4,7 Ω
resistance range max
82000 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Heating-resistor #Charge-and-discharge-resistor #Control-resistor #Ballast-resistor #Industry #Automation-technology #Equipment-and-plant-construction #Ceramic-carrier-cement-coated #Air-cooled
ZDFI
Cement-coated wire wound resistors
ZDFI Cement-coated Wire Resistors by KRAH. Here you can find the technical data & scope of application.
technical datadimensions (LxWxH)
50 x 9 x 27 … 250 x 12 x 45 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
40 W
rated power max
280 W
resistance range min
0,022 Ω
resistance range max
100000 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Heating-resistor #Charge-and-discharge-resistor #Control-resistor #Ballast-resistor #Industry #Automation-technology #Equipment-and-plant-construction #Power-Electronics #Ceramic-carrier-cement-coated #Air-cooled
ZDFL
Cement-coated wire wound resistors
ZDFL Cemented wire wound resistors with two or more lugs made by KRAH. Here you can find the technical data & scope of application.
technical datadimensions (LxWxH)
45 x 9 x 9 … 120 x 21 x 21 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
6 W
rated power max
65 W
resistance range min
0,39 Ω
resistance range max
160000 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Discharge-resistor #Heating-resistor #Charge-and-discharge-resistor #Control-resistor #Precharge-resistor #Ballast-resistor #E-Mobility #Battery-Management #On-Board-Charger #Industry #Automation-technology #Equipment-and-plant-construction #Ceramic-carrier-cement-coated #Air-cooled
ZDRS
Cement-coated wire wound resistors
technical datadimensions (LxWxH)
45 x 9 x 9 … 330 x 36 x 36 mm
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Speed-control #Adjustable-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Equipment-and-plant-construction #Power-Electronics #Ceramic-carrier-cement-coated #Air-cooled
ZDSA
Cement-coated wire wound resistors
ZDSA Cemented wire wound resistors with spotwelded radial tabs made by KRAH. Here you can find the technical data & scope of application.
technical datadimensions (LxWxH)
45 x 9 x 9 … 330 x 36 x 36 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
6 W
rated power max
300 W
resistance range min
0,62 Ω
resistance range max
620000 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Heating-resistor #Charge-and-discharge-resistor #Control-resistor #Ballast-resistor #Industry #Automation-technology #Equipment-and-plant-construction #Ceramic-carrier-cement-coated #Air-cooled
ZDST
Cement-coated wire wound resistors
technical datadimensions (LxWxH)
45 x 9 x 9 … 120 x 21 x 21 mm
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Speed-control #Discharge-resistor #Heating-resistor #Charge-and-discharge-resistor #Control-resistor #Precharge-resistor #Ballast-resistor #E-Mobility #Battery-Management #On-Board-Charger #Industry #Automation-technology #Equipment-and-plant-construction #Ceramic-carrier-cement-coated #Air-cooled
ZDVW/ST
Cement-coated wire wound resistors
ZDVW/ST Cemented wire wound resistors, square section, with flat-type connections and mounting clips made by KRAH. Here you will find the technical data & scope of application.
technical datadimensions (LxWxH)
63 x 13 x 13 … 125 x 13 x 25 mm
tolerance min ±
2 %
tolerance max ±
10 %
rated power min
25 W
rated power max
75 W
resistance range min
1 Ω
resistance range max
80000 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Heating-resistor #Charge-and-discharge-resistor #Control-resistor #Ballast-resistor #Industry #Automation-technology #Power-Engineering #Power-Electronics #Ceramic-carrier-cement-coated #Air-cooled
ZH/ZP
Cement-coated wire wound resistors
ZH/ZP Cement-coated flat-style wire wound resistors by KRAH. Here you will find the technical data & scope of application.
technical datadimensions (LxWxH)
25 x 8 x 14 … 75 x 9 x 17 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
6 W
rated power max
17 W
resistance range min
1 Ω
resistance range max
30000 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Heating-resistor #Charge-and-discharge-resistor #Control-resistor #Ballast-resistor #Industry #Equipment-and-plant-construction #Ceramic-carrier-cement-coated #Air-cooled
ZK
Cement-coated wire wound resistors
ZK Cemented wire wound resistors with ferrules made by KRAH. Here you can find the technical data & scope of application.
technical datadimensions (LxWxH)
55 x 13 x 13 … 265 x 24 x 24 mm
tolerance min ±
2 %
tolerance max ±
10 %
rated power min
16 W
rated power max
190 W
resistance range min
0,47 Ω
resistance range max
330000 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Heating-resistor #Charge-and-discharge-resistor #Control-resistor #Ballast-resistor #Industry #Automation-technology #Power-Engineering #Ceramic-carrier-cement-coated #Air-cooled
ZO
Heavy-duty resistors with special resistance ribbon
ZO Heavy-duty resistors with special resistance ribbon by KRAH. Here you can find the technical data & scope of application.
technical datadimensions (LxWxH)
117 x 57 x 57 … 708 x 57 x 57 mm
tolerance min ±
10 %
tolerance max ±
10 %
rated power min
90 W
rated power max
3188 W
resistance range min
0,027 Ω
resistance range max
5,15 Ω
#Current-limiting-resistor #Adjustable-resistor #Charge-and-discharge-resistor #Industry #Automation-technology #Power-Engineering #Equipment-and-plant-construction #Power-Electronics #Mechanical-Engineering #Transport-and-Logistics #Air-cooled #Open-coil-resistors
ZS
Cement-coated wire wound resistors
ZS Cemented wire wound resistors with radial tabs made by KRAH. Here you can find the technical data & scope of application.
technical datadimensions (LxWxH)
45 x 9 x 9 … 330 x 36 x 36 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
6 W
rated power max
300 W
resistance range min
0,62 Ω
resistance range max
220000 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Heating-resistor #Charge-and-discharge-resistor #Control-resistor #Ballast-resistor #Industry #Automation-technology #Power-Engineering #Ceramic-carrier-cement-coated #Air-cooled
ZS...V
Cement-coated wire wound resistors
ZS...V Cemented wire wound resistors with radial tabs and adjustable lug made by KRAH. Here you will find the technical data & scope of application.
technical datadimensions (LxWxH)
45 x 9 x 9 … 330 x 36 x 36 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
5 W
rated power max
180 W
resistance range min
0,62 Ω
resistance range max
120000 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Speed-control #Adjustable-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Automation-technology #Power-Engineering #Ceramic-carrier-cement-coated #Air-cooled
ZSB
Cement-coated wire wound resistors
ZSB Cemented wire wound resistors with corrugated ribbon or round wire and with radial tabs made by KRAH. Here you can find the technical data & scope of application.
technical datadimensions (LxWxH)
100 x 30 x 30 … 330 x 30 x 30 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
75 W
rated power max
270 W
resistance range min
0,1 Ω
resistance range max
270000 Ω
#Load-resistor #Brake-resistor #Filter-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Automation-technology #Power-Engineering #Equipment-and-plant-construction #Power-Electronics #Ceramic-carrier-cement-coated #Air-cooled
ZSB...V
Cement-coated wire wound resistors
ZSB...V Cemented wire wound resistors with corrugated ribbon or round wire and with and adjustable lug made by KRAH. Here you will find the technical data & scope of application.
technical datadimensions (LxWxH)
100 x 30 x 30 … 330 x 30 x 30 mm
tolerance min ±
10 %
tolerance max ±
10 %
rated power min
55 W
rated power max
180 W
resistance range min
0,1 Ω
resistance range max
36000 Ω
#Load-resistor #Brake-resistor #Filter-resistor #Speed-control #Adjustable-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Automation-technology #Power-Engineering #Equipment-and-plant-construction #Power-Electronics #Ceramic-carrier-cement-coated #Air-cooled
Accessories
for industry resistors
Accessories for industrial resistors by KRAH. Here you can find the technical data & scope of application.
#Accessories
ZDRS
Cement-coated wire wound resistors
technical datadimensions (LxWxH)
45 x 9 x 9 … 330 x 36 x 36 mm
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Speed-control #Adjustable-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Equipment-and-plant-construction #Power-Electronics #Ceramic-carrier-cement-coated #Air-cooled
ZDST
Cement-coated wire wound resistors
technical datadimensions (LxWxH)
45 x 9 x 9 … 120 x 21 x 21 mm
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Speed-control #Discharge-resistor #Heating-resistor #Charge-and-discharge-resistor #Control-resistor #Precharge-resistor #Ballast-resistor #E-Mobility #Battery-Management #On-Board-Charger #Industry #Automation-technology #Equipment-and-plant-construction #Ceramic-carrier-cement-coated #Air-cooled
ZDST
Cement-coated wire wound resistors
technical datadimensions (LxWxH)
45 x 9 x 9 … 120 x 21 x 21 mm
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Speed-control #Discharge-resistor #Heating-resistor #Charge-and-discharge-resistor #Control-resistor #Precharge-resistor #Ballast-resistor #E-Mobility #Battery-Management #On-Board-Charger #Industry #Automation-technology #Equipment-and-plant-construction #Ceramic-carrier-cement-coated #Air-cooled
RW
Vitreous enamelled wire wound resistors
technical datadimensions (LxWxH)
44.4 x 12.7 x 12.7 … 266.7 x 33.3 x 33.3 mm
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Heating-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Transport-and-Logistics #Ceramic-carrier-vitreous-enamelled #Air-cooled
KRX27-4H
Wire wound resistors in ceramic casing
KRX27-4H wire wound resistors in ceramic casing from KRAH. Square section, with flat-types plug connections and mounting clip. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
63.5 x 12.5 x 12.5 … 90 x 19 x 19 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
20 W
rated power max
40 W
resistance range min
1 Ω
resistance range max
20000 Ω
#Load-resistor #Brake-resistor #Filter-resistor #Charge-and-discharge-resistor #Balancing-resistor #Ballast-resistor #Industry #Automation-technology #Power-Electronics #Ceramic-casing #Air-cooled
LCRXG
Enamelled, liquid cooled pipe resistor
LCRXG - Enamelled, liquid cooled pipe resistor made by KRAH. Here you can find the technical data & application areas.
technical datatolerance max ±
10 %
rated power min
1000 W
rated power max
2000 W
dimensions (LxWxH)
331 x 44 x 93 mm
tolerance min ±
5 %
#Filter-resistor #Industry #Automation-technology #Power-Electronics #Liquid-cooled
GLS
Vitreous enamelled wire wound resistors
GLS Vitreous enamelled wire wound resistors from KRAH. Here you can find the technical data & application areas.
technical datadimensions (LxWxH)
45 x 10 x 10 … 330 x 33 x 33 mm
tolerance min ±
5 %
tolerance max ±
10 %
rated power min
10 W
tolerance max ±
400 %
resistance range min
1,0 Ω
resistance range max
275000 Ω
#Current-limiting-resistor #Load-resistor #Brake-resistor #Filter-resistor #Heating-resistor #Charge-and-discharge-resistor #Ballast-resistor #Industry #Power-Engineering #Transport-and-Logistics #Ceramic-carrier-vitreous-enamelled #Air-cooled
PWM
For radiator fan control (HVAC)
An electronic controller for controlling the fan speed. You can find technical data here.
#PWM #Engine-cooling #electronic controllers
HPRD
For current-limited charging of the capacities or discharging of the inverters, e.g. as pre-charging or discharging resistor.
#Discharge-resistor #Precharge-resistor #E-Mobility #Active-Discharge-Resistor #Battery-Management #On-Board-Charger #Passive-Discharge-Resistor
HPRD stranded connection
For current-limited charging of capacities or discharge of inverters, e.g. as precharge or discharge resistor.
#Discharge-resistor #Ballast-resistor #E-Mobility #Battery-Management #On-Board-Charger
HPRS T-PA
For current-limited charging of capacities or discharge of inverters, e.g. as precharge or discharge resistor.
#Active-Discharge-Resistor #Passive-Discharge-Resistor #Safety-Components #Discharge-resistor #E-Mobility #On-Board-Charger #Air-cooled
CHPR
For current-limited charging of capacities or discharge of inverters, e.g. as precharge or discharge resistor.
#Discharge-resistor #E-Mobility #On-Board-Charger #Aluminium-housing
KREV
For current-limited charging of capacities or discharge of inverters, e.g. as precharge or discharge resistor.
#Active-Discharge-Resistor #Passive-Discharge-Resistor #Safety-Components #Discharge-resistor #E-Mobility #Battery-Management #On-Board-Charger
HVCH
High-voltage heater for integration into the cooling circuit and temperature control of the passenger compartment and battery.
#High-Voltage-Coolant-Heater #E-Mobility #High-Voltage-Coolant-Heater
RXDG-F
High-voltage heater for integration into the cooling circuit and temperature control of the passenger compartment and battery.
#High-Voltage-Coolant-Heater #E-Mobility #High-Voltage-Coolant-Heater #Heating-Elements
RXDG-S
High-voltage auxiliary heater for integration into the cooling circuit and temperature control of the passenger compartment and battery.
#High-Voltage-Coolant-Heater #E-Mobility #High-Voltage-Coolant-Heater #Heating-Elements
NSR overmolded
Noise Suppression Resistors (NSR) Automotive - overmolded
#Ignition-systems
HPBR
liquid-cooled brake resistor
Liquid-coolant braking resistor for applications in hybrid/electric trucks and buses.
technical datatolerance max ±
10 %
tolerance min ±
5 %
Voltage max
1200 V
rated power max (kW)
250 kW
#Liquid-cooled #Brake-resistor #E-Mobility #E-Drives-recuperation #liquid-cooled brake resistor
LCBR
liquid-cooled brake resistor
Liquid-coolant braking resistor for applications in hybrid/electric trucks and buses.
technical datatolerance max ±
10 %
Voltage max
1200 V
tolerance min ±
5 %
rated power max (kW)
250 kW
#Liquid-cooled #Brake-resistor #E-Mobility #E-Drives-recuperation #liquid-cooled brake resistor
HPRS AD / HPRS PD
Active or Passive Discharge
Active Discharge: Fast, controlled energy dissipation for maximum safety in high-voltage systems. Passive Discharge: Reliable, always-available residual discharge as a robust safety backup solution.
#Active-Discharge-Resistor #Discharge-Resistor #Passive-Discharge-Resistor #Safety-Components
RXDG-F
Contour-following, meandering tool heating
technical dataresistance range min
1,5 Ω
rated power max
3600 W
resistance range max
480 Ω
Voltage max
500 V
pipe diameter
6,5 / 8,0 / 8,5 / 10,0 / 12,0 / 14,0 mm
Connection type
Bolts, threads, strands, flat connectors
#Industry #Heating-Elements
RXDG-S
Larger surface area thanks to the helical design. Compact construction with high performance; mechanically stable and vibration-resistant.
technical dataresistance range min
1,5 Ω
rated power max
3600 W
resistance range max
480 Ω
Voltage max
500 V
pipe diameter
6,5 7 8,0 / 8,5 / 10,0 / 12,0 / 14,0 mm
Connection type
Bolts, threads, strands, flat connectors
#Industry #Heating-Elements
RXDG-L
Ribbed radiator for increased surface radiation. Typically used for heating air, in air heaters, air conditioning systems, etc.
technical dataresistance range min
1,5 Ω
rated power max
3600 W
resistance range max
480 Ω
Voltage max
500 V
pipe diameter
6,5 / 8,0 / 8,5 / 10,0 / 12,0 / 14,0 mm
Connection type
Bolts, threads, strands, flat connectors
#Industry #Heating-Elements
RXDG-F
Contour-following, meandering tool heating
technical dataresistance range min
1,5 Ω
rated power max
3600 W
resistance range max
480 Ω
Voltage max
500 V
pipe diameter
6,5 / 8,0 / 8,5 / 10,0 / 12,0 / 14,0 mm
Connection type
Bolts, threads, strands, flat connectors
#Industry #Heating-Elements
RXDG-F
Contour-following, meandering tool heating
technical dataresistance range min
1,5 Ω
rated power max
3600 W
resistance range max
480 Ω
Voltage max
500 V
pipe diameter
6,5 / 8,0 / 8,5 / 10,0 / 12,0 / 14,0 mm
Connection type
Bolts, threads, strands, flat connectors
#Industry #Heating-Elements
SWCH-C
Coiled tube cartridge with thermocouple integrated into the brass turned part. Typically used for nozzle heating in plastic injection molding tools.
technical dataVoltage max
220 V - 240 V
resistance range min
100 Ω
resistance range max
440 Ω
#Industry #Mechanical-Engineering #Heating-Elements
SWCH-O
Classic spiral tube cartridge. Typically used for nozzle heating in plastic injection molding tools.
technical dataVoltage max
220 V - 240 V
resistance range min
36 Ω
resistance range max
240 Ω
#Industry #Mechanical-Engineering #Heating-Elements
STCH
Heating element applications, such as tool heating, plastics processing, packaging machinery, and medical devices
#Industry #Mechanical-Engineering #Heating-Elements
BR
Cemented Wire Resistors
Cemented wire resistors with axial wire terminals and caps. Here you will find the technical specifications and applications.
technical datadimensions (LxWxH)
mm
resistance range min
0,15 Ω
tolerance min ±
1 %
tolerance max ±
10 %
resistance range max
110000 Ω
rated power min
3 W
rated power max
18 W
#Load-resistor #Brake-resistor #Filter-resistor #Heating-resistor #Charge-and-discharge-resistor #Control-resistor #Precharge-resistor #E-Mobility #Battery-Management #Industry #Automation-technology #Power-Engineering #Power-Electronics #Transport-and-Logistics #Ceramic-carrier-cement-coated #Air-cooled
Do you need assistance
with your selection?
We provide personalised advice
